The best direct drive wheels for sim racing in 2026.

Direct drive is the single biggest feel upgrade in sim racing. There is no second place. This is the complete guide to choosing one — by torque tier, by platform, by budget, and by the spec lines that actually matter once the marketing copy ends.

Jump to torque tiers Choose by platform

Why direct drive

The biggest single feel upgrade in sim racing

The first lap on a direct-drive base after years on belt drive is the kind of moment people remember. Tyre slip arrives through your hands instead of being implied by sound. The front-end load on a turn-in becomes a thing you feel rather than read on screen. Kerb texture is crisp rib by rib instead of a generic rumble. None of it is exaggeration. Belt and gear drive bases approximate this. Direct drive delivers it.

The mechanical reason is simple. A direct-drive wheelbase bolts the steering wheel straight onto an industrial servo motor — no belts, no gears, nothing in between to dampen, smear or delay the signal the simulator wants to send to your hands. The result is a force-feedback signal that is faster, more detailed, and more honest than anything that came before it. The cheapest direct-drive base on the market today produces a higher-fidelity FFB signal than the most expensive belt drive ever made.

The cost ceiling has also collapsed. In 2019 the only direct-drive wheelbase under $1,000 was a kit you assembled yourself. In 2026 there are more than ten of them, and the cheapest is under $400. This guide exists because the choice has stopped being "should I" and become "which one".

The basics

What is a direct drive wheel?

A direct drive wheel — sometimes called a DD wheel, a DD wheelbase, or just a direct drive — is a sim racing steering wheel that bolts straight onto an industrial servo motor with nothing in between. No belts. No gears. No reduction stage. The motor itself is the steering column, and the force feedback signal the simulator generates goes straight from the game engine to your hands without anything mechanical in the middle to soften, delay or smear it.

Older sim racing wheels used belts (Thrustmaster T300, Logitech G Pro before the RS50) or gears (Logitech G29) to step a small fast motor down into something that felt strong enough at the wheel rim. Both approaches work. Both also lose detail. Belts swallow the highest-frequency texture. Gears introduce a small dead zone every time the load reverses. Direct drive removes both problems by removing the intermediate hardware entirely.

The result is a force feedback signal that is faster, more detailed, and stronger. Tyre slip arrives as a continuous gradient. Kerbs are crisp rib by rib. The moment a front wheel lifts on a turn-in is a thing you feel rather than a thing you guess at. Once you have driven on direct drive for a week you do not go back.

How much torque do I need?

5 Nm, 8 Nm, 10 Nm, 12 Nm, 15 Nm or 25 Nm?

Short version: most people need 8 to 12 Nm. Anything less feels muted within a year. Anything more needs a properly bolted rig and a good reason.

5 Nm

First direct drive on the tightest budget. Conservative enough that nobody is hurting their wrists. Almost everyone upgrades inside two years.

8 Nm

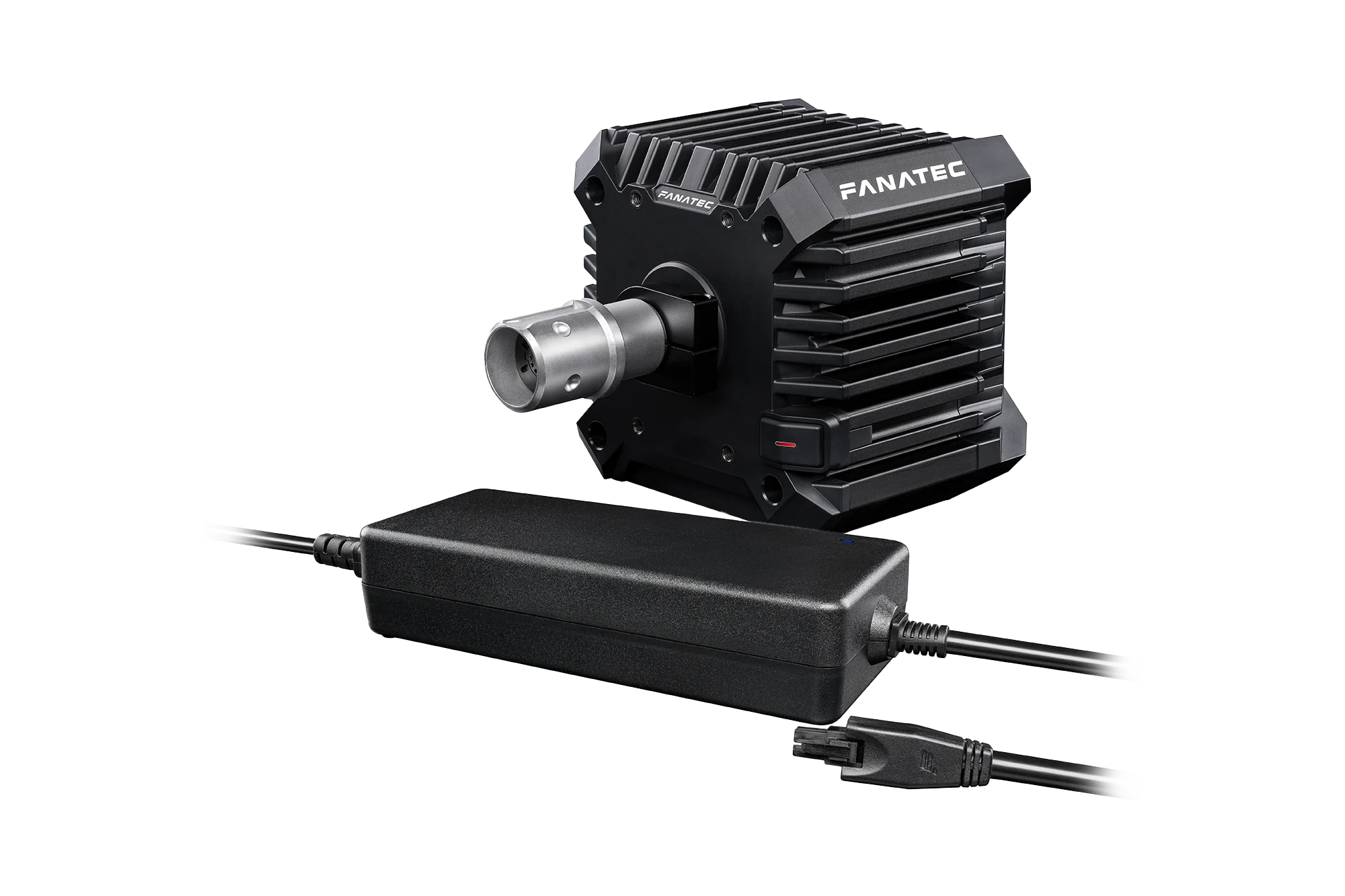

The Fanatec CSL DD with the Boost Kit, the GT DD Pro, the Moza R9 V3. A proper entry direct drive that you will not immediately outgrow.

10 Nm

An awkward middle. Almost nobody sells exactly 10 Nm any more. If you find one in this range it is usually a discounted older base.

12 Nm Sweet spot

The Moza R12 V2, Simagic Alpha EVO, Fanatec ClubSport DD 12. Enough authority for GT3 and prototype work, not so much that you need a bolted rig.

15 to 18 Nm

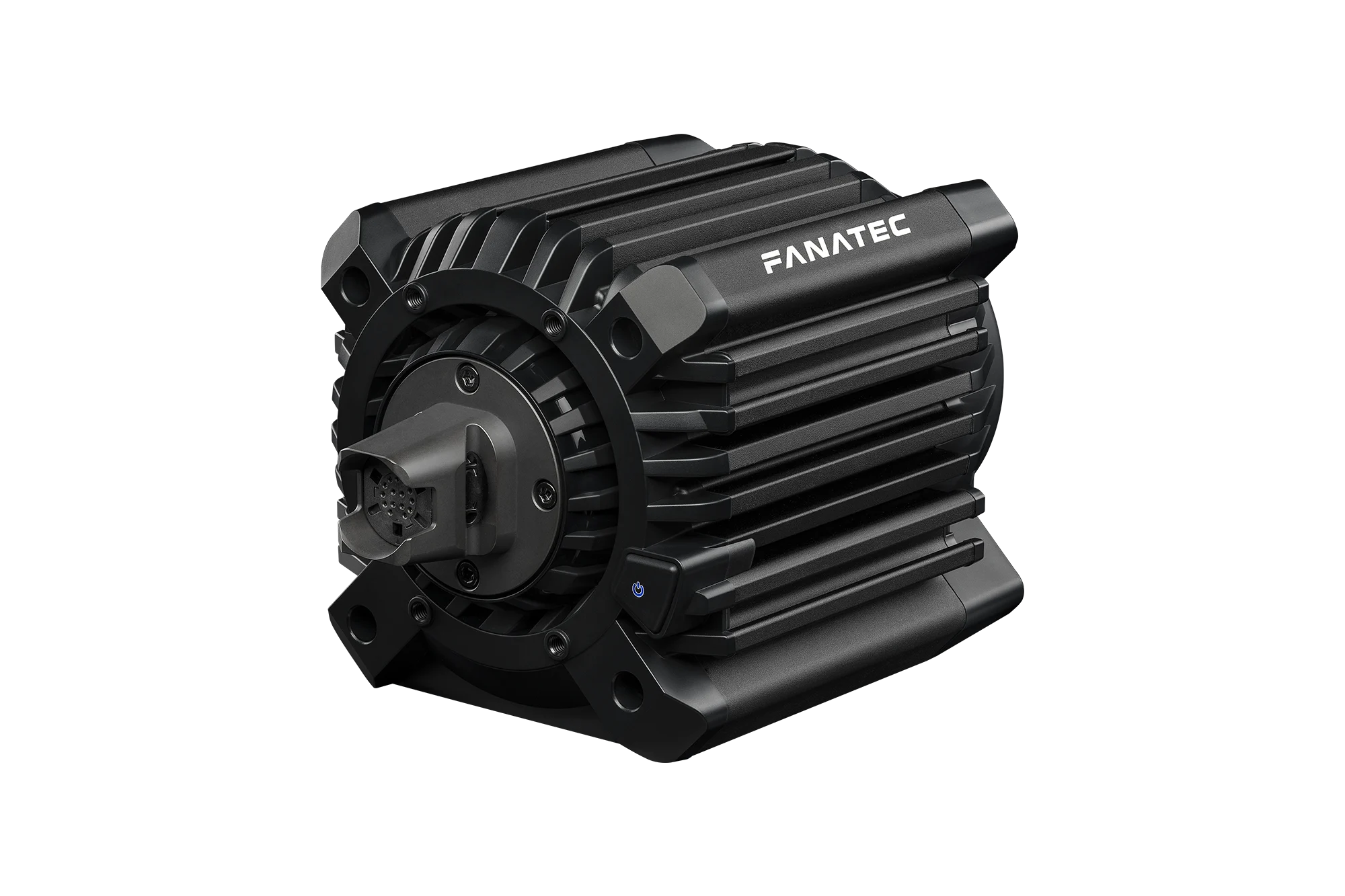

Where serious league racers cluster. R16 V2, ClubSport DD+. Properly bolted rig required from here onward.

25 Nm

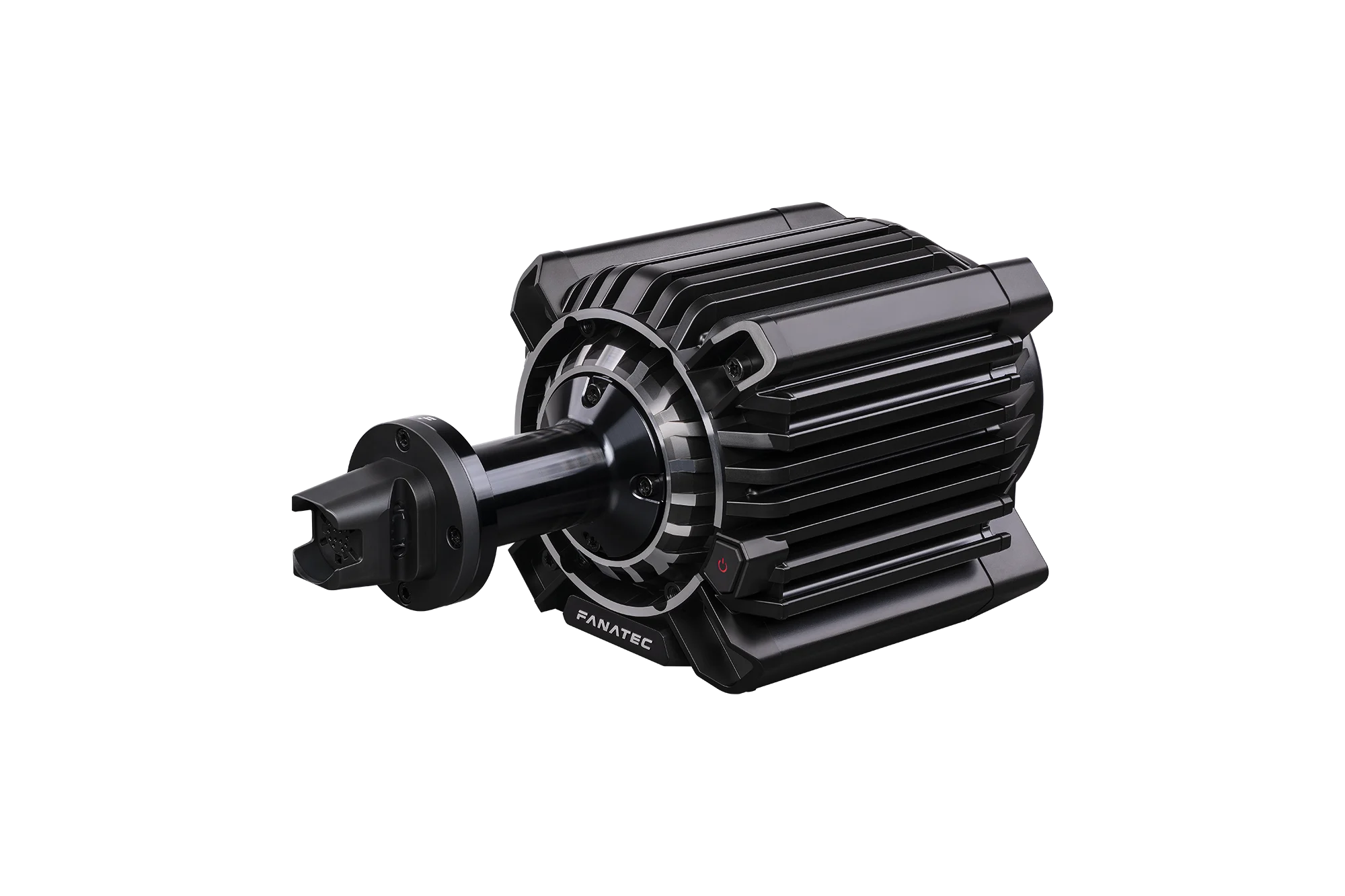

Flagship territory. Simucube 2 Pro, Fanatec Podium DD, Moza R25 Ultra. The ceiling most owners ever need.

How to choose

The eight things that actually matter

Spec sheets list dozens of numbers. These are the ones that change your buying decision.

  1. 1

    Torque (Nm)

    Headline spec

    Peak Newton-metres. The single biggest factor in how a base feels. More torque means more authority in the heaviest moments — front-end load on a turn-in, kerb strikes, the slip moment on a hot lap. Torque is also what tells your wrists they cannot win an argument with the simulator.

  2. 2

    Encoder resolution

    Smoothness

    How precisely the base measures wheel position. Higher bit counts (21-bit, 22-bit) produce a smoother continuous force signal — the difference between feeling a kerb as a discrete event and feeling it as a textured surface.

  3. 3

    Slew rate

    Response speed

    How quickly the motor can change torque output. A high slew rate means crisp transitions: the moment the front wheels lose grip, you feel it instantly. A low slew rate smears those moments together.

  4. 4

    Cooling

    Endurance

    Active cooling (fans, liquid) lets the base maintain peak torque over long stints without thermal fade. Passively cooled bases run cooler in short stints and start to compress under sustained heavy FFB.

  5. 5

    Software

    Configurability

    Simucube True Drive is the genre reference. Simagic Manager, Moza Pit House, and Fanatec Control Panel have all caught up significantly in the past two years. The depth of control matters less than whether the live telemetry view lets you diagnose clipping properly.

  6. 6

    Quick release

    Ecosystem lock-in

    Every major brand has its own QR standard. Moza, Simagic, Simucube, Fanatec — they are all proprietary. Once you own rims from one brand, switching means buying adapters with play. Plan your rim collection before you commit.

  7. 7

    Console licensing

    Platform compatibility

    PS5 requires a Sony license. Xbox requires a Microsoft license. PC requires neither. Fanatec is the only brand with a current PS5-licensed direct drive base (Gran Turismo DD Pro and the rest of the GT line). Moza, Simagic, and Simucube are PC-only or PC-plus-Xbox.

  8. 8

    Build quality and QC

    Long-term ownership

    Simucube has the quietest QC reputation in the category. Moza and Simagic are reliable but not bulletproof — documented owner reports of QR play, rattles, and slow customer support. Fanatec has the most variable QC and the longest RMA queues, partially offset by a 3-year warranty since June 2025.

Choose by platform

The right base for your console or PC

Console licensing is the single biggest constraint that filters out most of the catalogue. Start here.

PlayStation 5

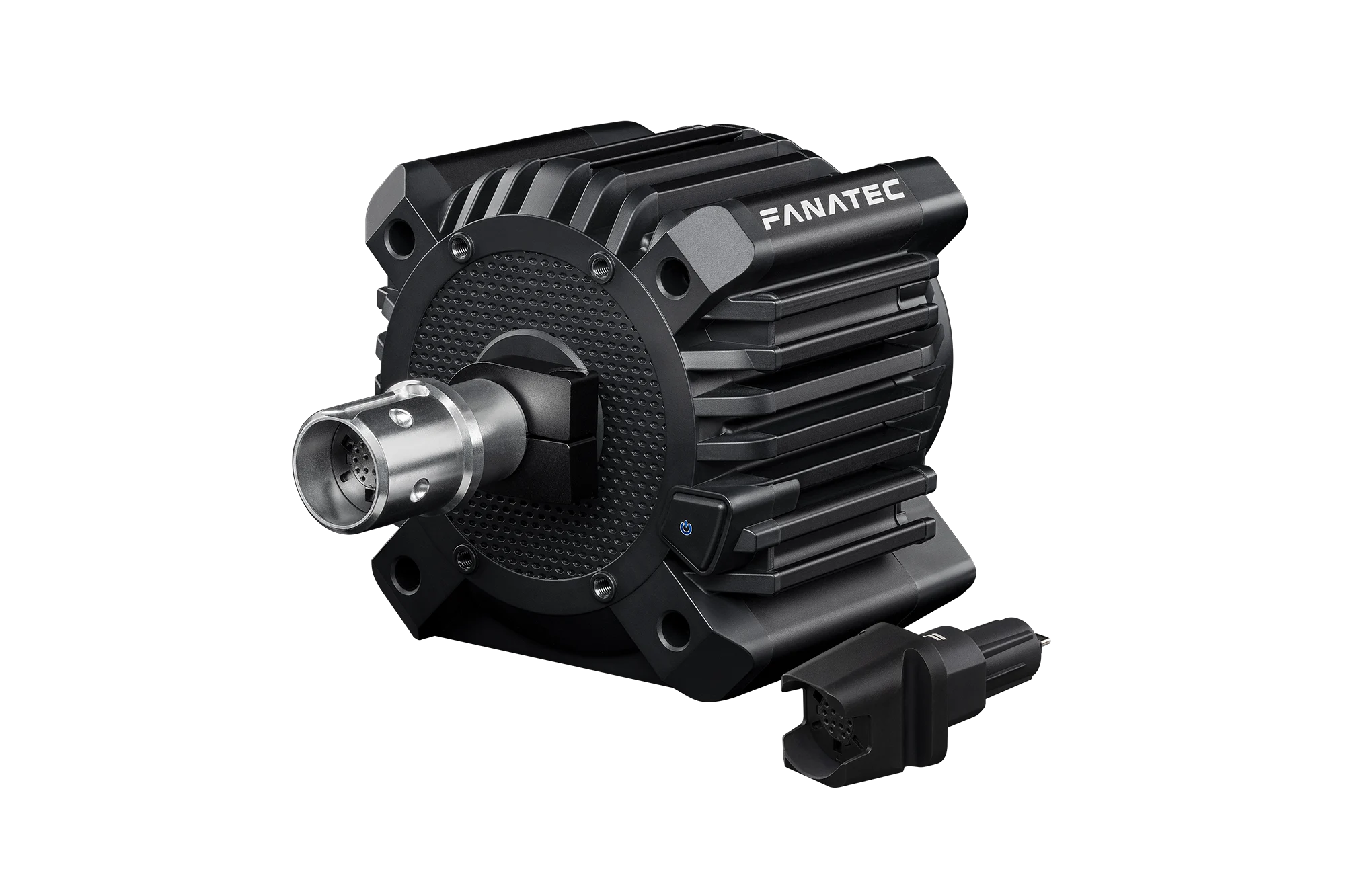

Fanatec Gran Turismo DD Pro

There is no other native direct-drive option in the entry price band on PS5. Logitech G Pro and the newer G RS50 are the only meaningful alternatives, both significantly more expensive.

Xbox Series X|S

Fanatec CSL DD (with Xbox-licensed rim)

Almost no real direct-drive competition near this price band on Xbox. Moza R12 V2 also works via the Xbox-licensed ESX rim if you want a step up in feel.

PC (entry budget)

Moza R5 or Fanatec CSL DD

The R5 wins on raw signal at the same price. The CSL DD wins if you plan to grow into the Fanatec ecosystem.

PC (mid budget)

Moza R12 V2

The smartest 12 Nm buy on PC and the best feel-per-dollar in the catalogue. Simagic Alpha EVO is the refinement step up if you can stretch the budget.

PC (flagship)

Simucube 2 Pro

Six years on the market and still the benchmark for build quality and software. Moza R25 Ultra is the value flagship; Fanatec Podium DD is the cross-platform flagship.

Browse by torque tier

Six tiers, every base we track

Direct-drive bases are sold by peak Newton-metres. Pick the tier that matches your level and your budget — the right base for you almost certainly lives inside one of these brackets.

First direct drive · Xbox / PS5 / PC

Entry tier · 5 to 9 Nm

A first direct drive. Smooth detail at a price where ownership risk is low. Limited torque ceiling is a feature, not a flaw — your wrists will thank you while you learn what direct drive feels like. Almost everyone who buys here ends up upgrading within two years.

Typical budget

$400 — $700

5 models tracked

The sweet spot for most sim racers

Mid tier · 10 to 14 Nm

Enough torque for GT3 and prototypes without bolting yourself to a frame. The full ecosystem from every major brand opens up here, software is properly mature, and the price-to-feel ratio is the best in the category. If you do not have a specific reason to buy elsewhere, buy here.

Typical budget

$500 — $900

4 models tracked

Serious league and esports racers

Upper-mid tier · 15 to 18 Nm

Approaches real-car steering weight in high-downforce content. Where the fast lads cluster. The headroom you need for heavy formula and LMP work at full FFB without paying the flagship premium. Requires a properly bolted rig — desk mounting starts to creak.

Typical budget

$700 — $1,200

4 models tracked

Endurance leagues, pro-am drivers

High-end tier · 19 to 22 Nm

Flagship territory for most enthusiast budgets. Generous headroom across every car class, the kind of authority that lets the sim communicate everything the car is doing without ever feeling muted. The point at which torque stops being the limiting factor.

Typical budget

$900 — $1,500

3 models tracked

Reference torque, no compromises

Flagship tier · 25 Nm

Reference torque. Best motors, best encoders, best software. The ceiling most owners ever need. At this tier you are paying for refinement and longevity rather than raw numbers — the difference is in the noise floor of the FFB signal and in the build quality of the hardware that will outlast the rest of your rig.

Typical budget

$1,500 — $2,500

4 models tracked

Open-wheel professional simulators

Ultra tier · 30 Nm and up

Beyond what a human can sustain for a full stint at full force. Niche territory for open-wheel simulators, professional driver-in-the-loop rigs, and people who want maximum bragging rights. Almost no consumer needs this much torque.

Typical budget

$3,000 and up

2 models tracked

Best budget direct drive wheel

The eight cheapest direct drive wheels in 2026

Sorted by current tracked price. Updated from real merchants every 14 days. The cheapest legitimate direct drive on the market right now is the Fanatec CSL DD 5 Nm — and almost everyone who buys it ends up upgrading to the 8 Nm version anyway.

Rank Wheelbase Brand Torque Price
#1 Fanatec CSL DD (8 Nm) [object Object] 8 Nm $300
#2 MOZA R9 V3 Wheel Base [object Object] 9 Nm $329
#3 Simagic Alpha EVO Sport (9 Nm) [object Object] 9 Nm $399
#4 Fanatec CSL DD (5 Nm) [object Object] 5 Nm $400
#5 MOZA R12 V2 Wheel Base [object Object] 12 Nm $429
#6 Simagic Alpha EVO (12 Nm) [object Object] 12 Nm $519
#7 Fanatec Gran Turismo DD Pro (8 Nm) [object Object] 8 Nm $600
#8 MOZA R16 V2 Wheel Base [object Object] 16 Nm $699

Brand by brand

The five families that matter

Each brand has a personality. The right base for you is the one whose strengths line up with what you race.

Fanatec

Console-friendly · ecosystem-deep

The only brand with a current PS5 license on direct drive (Gran Turismo DD Pro line). The deepest rim and pedal catalogue in the category. QC variability and slow RMA queues are the long-running grumble, partially offset by the 3-year warranty introduced under Corsair ownership in June 2025. The right pick for console drivers and for buyers who plan to grow into a full Fanatec rig.

Moza

Best feel-per-dollar · PC focus

The brand that broke the price ceiling on every torque tier. R12 V2 is still the smartest 12 Nm buy on PC. R25 Ultra is the flagship that undercuts Simucube on price while matching the headline torque. Pit House software has caught up significantly in the past two years. PC primary, Xbox via the licensed ESX rim, no PlayStation route.

Simucube

Refinement reference · PC only

The high-end benchmark. True Drive is the genre's reference FFB software. Build quality and long-term reliability are the quietest strengths in the category. SC2 Pro has been current for six years and still has not been outclassed in its tier. SC3 line is the in-house upgrade path. PC only — no console license, no firmware route around it.

Simagic

Smoothest signal · refinement-led

The mid-tier refinement pick. Alpha EVO line uses 5-pole servos with active cooling and zero-cogging tuning that most reviewers say produces the smoothest signal in the 12 Nm class. Pricier than Moza for similar headline torque, with the difference showing up in the noise floor of the FFB signal rather than on the spec sheet. PC only.

Asetek & Thrustmaster

The other two

Asetek SimSports (La Prima, Forte, Invicta) is the F1-team-engineered Danish challenger — premium build, premium pricing, premium ecosystem you have to opt into. Thrustmaster T818 is the brand's only direct-drive base, a serviceable PC mid-tier offering that has not kept pace with Moza or Simagic on either feel or value. The recent T598 brings Thrustmaster's first direct-drive option to PS5 but reviewers still hand the racing-feel edge to Fanatec.

The shortlist

If you read nothing else

PS5 driver

Fanatec Gran Turismo DD Pro. There is no realistic alternative in its price band.

Xbox driver

Fanatec CSL DD 8 Nm with an Xbox-licensed rim. Skip the 5 Nm version.

PC, tight budget

Moza R5 or R9 V3 — best signal at the entry price point.

PC, mid budget

Moza R12 V2. The smartest 12 Nm buy on the spreadsheet.

PC, refinement over price

Simagic Alpha EVO 12. The smoothest signal in the mid tier.

PC, flagship

Simucube 2 Pro. Six years on the market and still the benchmark.

Ready to dig into a specific base?

Every base in this guide has a full deep-dive review with a 7-axis rubric, expert quotes, real-world FAQ, and live prices.
